Tab: Software metrics for license determination
A metric in this environment is the "value" (number) of units relevant to the license calculation. Depending on the product, this can be, for example, the size of the user code (in bytes) or the number of axes, I/O channels, or fieldbus instances.
The tab of the device editor displays a tree structure containing the metrics which are available for the application. In this way, you can view the current measured values and check whether or not more code is downloaded to a controller than the license allows. The license is issued for each controller and is therefore located on the controller. The license check is also performed there.
The metrics are transferred to the controller during the download. They are refreshed when you click for the active application.
Read current metrics from device | Gets and transfers the metrics from the controller and displays them in the Value on Device column. |
Generate code to calculate metrics | The code must be generated to calculate the metrics. |
Show licenses | Opens the Licenses dialog The dialog shows the license required for the project. The Open all in Store and close dialog command opens the suggested product in CODESYS Store International. If you want to display the product in CODESYS Store North America, then you need to select the North America store in the CODESYS options. |
Metric | Metric types per application |
Value in Project | Number of tags used in the development system. The value is measured during code generation ( command). For details about the calculation, see the Calculation of the values section. Note: If you delete the compile information of the application, then the values will be reset to 0. |
Max. allowed by License | Allowed maximum values for each application according to the license on the controller |
Value on Device | Actual measured value, read from the controller Note: To determine these values, the communication has to be working. |
Calculation of the values
Metric | Determined Value |
|---|---|
Size of User Code | Value (in bytes) Only user-programmed code (implementation) is evaluated. Code which has not been compiled with the IEC compiler is not evaluated. The number and size of variables in the declaration is not relevant. IEC libraries developed by the user are evaluated for the code size. Standard libraries, system libraries, and communication stacks of the CODESYS GmbH are not evaluated. |
Task Group Assignment | For the configuration of IEC task groups in the task configuration, a "Task Group Assignment" license is required in many cases if the IEC tasks are executed on different CPU cores. No: No license is required for the following configurations:
Yes: A license is required for the following configurations:
|
Fieldbus, I/O channels | Number of mapped channels with basic data type ( ImportantIf you have selected the Always update variables option, then all channels will be taken into account in the calculation, regardless of whether or not they are assigned to a specific IEC variable. |

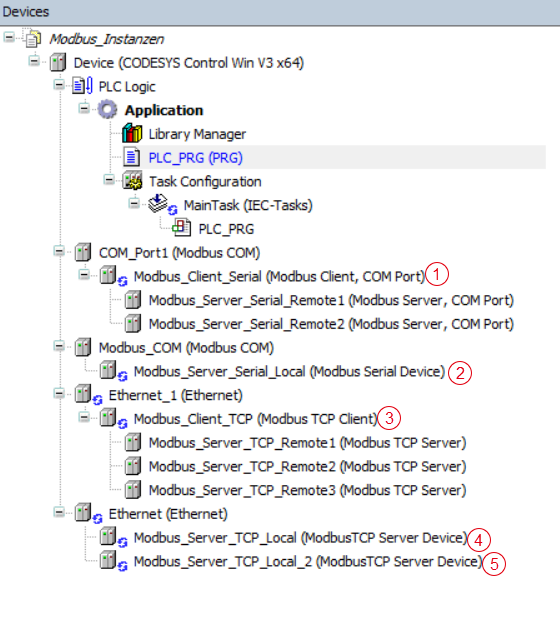

Instances of CANopen, Modbus, PROFIBUS | Used fieldbus stack instances of this type In the case of Modbus, instances of the mode clients for RTU and TCP are counted. A Master/Controller or a Slave/Device is counted as one instance in the device configuration. The devices which are linked to these Masters/Slaves in the device tree are not counted. These are counted via the I/O channels. Fieldbus gateways are also counted as an instance (exception: CANopen Gateway). |
Instances of EtherCAT, EtherNet/IP, PROFINET, SAE J1939 | |
Number of visualization tags | |
SoftMotion | |
Communication |
Information about the license packages for the application-based licenses can be found in the CODESYS Store.
